Examining unified Snort output

Let's take a look at unified output. We'll use a methodology similar to that in our last Snort Report, namely processing a saved Libpcap file that should trigger one alert. In order to enable unified output, we uncomment these entries in the snort.conf.2.6.1.4 file. (This is simply a renamed copy of the snort.conf that ships with Snort 2.6.1.4.)

output alert_unified: filename snort.alert, limit 128
output log_unified: filename snort.log, limit 128

Next we run Snort.

cel433:/usr/local/snort-2.6.1.4# bin/snort -c
snort.conf.2.6.1.4 -r www.testmyids.com.lpc -l /tmp/so/unified/
Running in IDS mode

        --== Initializing Snort ==--
Initializing Output Plugins!
...edited...
Action Stats:
ALERTS: 1
LOGGED: 1
PASSED: 0
...edited...
Snort exiting

Now the following exist in the specified log directory.

cel433:/tmp/so/unified# ls -al
total 8
drwxr-xr-x   2 root  wheel  512 Jun  1 15:47 .
drwxr-xr-x  11 root  wheel  512 Jun  1 15:41 ..
-rw-------   1 root  wheel   80 Jun  1 15:47 snort.alert.1180727255
-rw-------   1 root  wheel  420 Jun  1 15:47 snort.log.1180727255

Here are the contents of snort.alert.TIMESTAMP as rendered by hd(1).

Obviously we need help decoding the contents of this file!

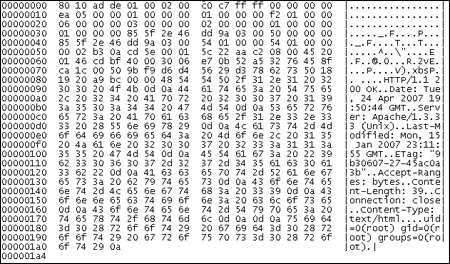

Here are the contents of snort.log.TIMESTAMP as rendered by hd(1).

This file is also difficult to interpret, although the packet details are visible. Layer 7 content appears on line 0x80 with HTTP/1.1 and is easily recognized. Layer 2 content, starting with destination MAC address, starts at line 0x50 with 00 02 b3 0a cd 5e.

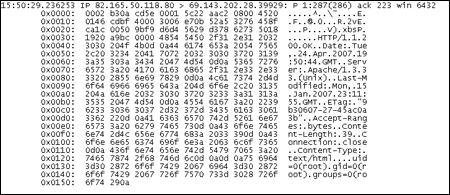

A look at the actual offending packet using TCPdump and its -XX switch reveals the same traffic:

Now that we have alerts and logs in unified format, the question becomes what do we do with them?
