Barnyard processing logs for Snort

Even though Barnyard had six output plugins configured, only the alert plugins were active. Barnyard was processing a snort.alert.TIMESTAMP file, so the snort.log.TIMESTAMP file was ignored. Now we tell Barnyard to process that file.

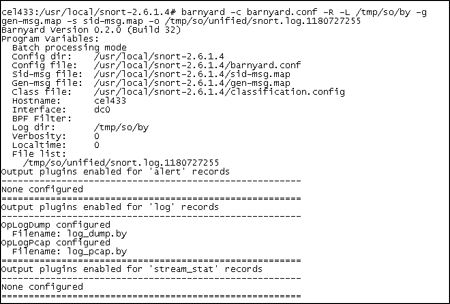

Again we test Barnyard using the -R switch. I disabled all plugins but the two for processing log data.

Barnyard is ready to process the file.

Two log records are created.

cel433:/tmp/so/by# ls -al | grep log
-rw-r--r--   1 root  wheel  1598 Jun  1 16:31 log_dump.by
-rw-r--r--   1 root  wheel   380 Jun  1 16:31
log_pcap.by.2007-06-01@16-31-04

One is ASCII text and the other is Libpcap format.

cel433:/tmp/so/by# file log*
log_dump.by:                     ASCII text
log_pcap.by.2007-06-01@16-31-04: tcpdump capture file
(little-endian) - version 2.4 (Ethernet, capture length 1514)

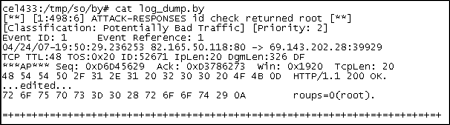

Here are the contents of log_dump.by, editing to conserve space.

The other file is in Libpcap format. Here I just show the header to conserve space.

As you can see, Barnyard can replicate the features found in the native Snort output modes.
